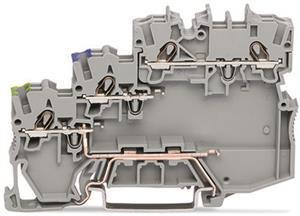

WAGO WAGO2000-5317/102-000

Product no.: WAGO2000-5317/102-000

693.77 € / 100 piece(s) *

Prices include VAT, plus delivery

1 piece(s) = 6.94 €

Order items, Product coming soon app. 10 working days.

Delivery weight: 0.45 kg

Available delivery methods: Shipping Germany, Innerhalb Deutschland

Description

Additional product information

Hersteller	WAGO GmbH & Co. KG Hansastraße 27 D-32423 Minden Telefon: +49(0)571 887 - 0 Fax: E-Mail:info.de@wago.com
Datenblatt	Warnung: Gefährliche Spannung! Siehe Installationsanleitung. Vor dem Arbeiten Gerät ausschalten und von der Spannungsversorgung trennen. Achtung! Installation nur durch elektrotechnische Fachkraft. Weitere Informationen: Datenblatt Handbücher/Installationsanleitung/Produktsicherheit Systembeschreibung

Price reductions


Technical data
Connectable conductor cross section fine-strand without cable end sleeve	:	0,14 - 1,5
Connectable conductor cross section fine-strand with cable end sleeve	:	0,5 - 0,75
Connectable conductor cross section solid-core	:	0,5 - 1,5
Connectable conductor cross section multi-wired	:	1 - 0,14
Rated current In	:	13,5
Nominal rated voltage	:	250
Number of levels	:	3
Number of clamp positions per level	:	2
Internally connected stages	:	no
Type of electrical connection 1	:	Spring clamp connection
Type of electrical connection 2	:	Spring clamp connection
Connection position	:	Above
Cross connectable	:	yes
Material insulation body	:	Thermoplastic
Operation temperature	:	105 - 105
Inflammability class of insulation material acc, with UL94	:
Width/grid dimension	:
Height at lowest possible mounting height	:
Length	:
Explosion-tested version Ex e	:
Weight	:	0,9kg
Datasheet (pdf)	:	Datasheet 2000-5317/102-000
